Description
|
Model |
OPC-32 |
|
|
Product Name |

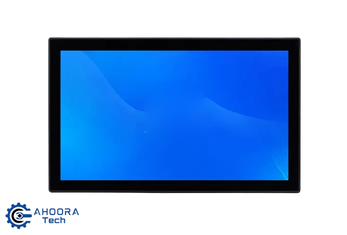

32″ Industrial Fanless Panel PC |
|
|
Display |
Screen Size |
32″ |
|
Screen Resolution |
1920 x 1080 |
|
|
Screen Ratio |
16:9 |
|
|
Brightness |
250 nits |
|
|
Optional 1000 ~ 2000 nits High-brighntess |
||
|
Touchscreen |
Touch Screen |
Capacitive (Multi-touch) |
|
Primary Components |
Processor Family |
Intel Processors |
|
Processor Model |
13th/12th/10th/8th/7th/6th/5th/3th|i3/i5/i7, J1800,J1900,J6412,N5095,N100 |
|
|
Memory Type |
DDR3, DDR4 |
|
|
Memory Support |
4GB,8GB,16GB,32GB |
|
|
Storage Type |
1x mSATA/1x 2.5″ SATA Drive Bay for SSD/HDD ≤2TB, 1x M.2/1x 2.5″ SATA Drive Bay for SSD/HDD ≤2TB |
|
|
Storage Support |
MS:128GB~512GB | M.2: 128GB ~ 1TB |
|
|
Operating Systems |
Windows |
Windows 10 IoT, Windows 10 Pro, Windows 11, Windows 11 Pro |
|
Linux |
Linux Ubuntu 20.04 or above (Contact your sales rep for more information) |
|
|
Peripherals & Wireless Connectivity |
WiFi |
Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6 |
|
Bluetooth |
Optional Bluetooth 5.3 |
|
|
External I/O Ports |
USB |
4x USB |
|
Serial Protocol Detail/COM |
2x RS232/RS485, 5x COM option |
|
|
Ethernet / LAN |
2x RJ45 GbE LAN, Optional 4 GbE LAN ports to PoE, 5x LANs |
|
|
Video Outputs |
1x HDMI, 1x VGA, Optional 1x DisplayPort, supports DP++ |
|
|
Audio Ports |
1x Audio Line-Out |
|
|
Power Input Port |
3-Pin DC-In (Phoenix Type) |
|
|
Power |
Standard Power Adapter |
12V DC Adapter and power cable, 5A, 60W |
|
Input Voltage Range |
Optional 9-36V DC |
|
|
Expansion Slots |
Internal M.2 |
1x Mini PCIe WiFi&BT or 4G LTE, 1x M.2(KEY E WiFi&BT 2230)/1x M.2 (KEY B 4G/5G LTE 3052) |
|
Others |
Speaker, 4G module, 5G module, 4x LAN, 5x LAN, 4x LAN upgrades to PoE |
|
|
Weight / Dimensions |
Weight |
10.50 kg |
|
Dimensions |
770.7 x 465.6 x 57.2 mm |
|
|
Thermal & Environmental |
Operating Temperature |
-30°C ~ 70°C |
|
Storage Temperature |
-40°C ~ 80°C |
|
|
Cooling Solution |
Passive – Fanless with Heatsink |
|
|
Humidity Range |
10% – 95% Non-condensing |
|
|
Enclosure |
Material |
Metal Chassis |
|
IP Rating |
IP65 Front Bezel |
|
|
Color |
Black |
|
|
Mounting Options |
Panel Mount, VESA 100 Mount |
|
