Description
|
Product Name and Model |

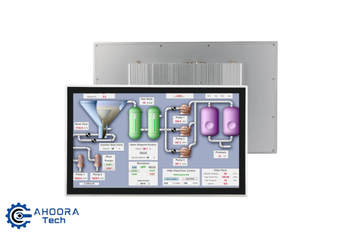

23.8″ Industrial Embedded Panel PC, Ratio 16:9 Multi-Touchscreen-Monitor | CP-6710-238 |
|
|
Primary Components |
Processor Family |
Intel Core I series 8th Generation Whiskey Lake-U |
|
Processor Model |
Core i3 8145UE |
|
|
Processor Speed |
2.2 GHz, Up to 3.9 GHz |
|
|
Memory Type |
1x DDR4 SO-DIMM |
|
|
Memory Support |
4GB, 8GB, 16GB, 32GB |
|
|
Storage Type |
1x M.2 SATA3 2242 Slot |
|
|
Storage Support |
M.2: 256GB-1TB |
|
|
Display |
Screen Size |
23.8″ |
|
Screen Resolution |
1920 x 1080 (Full HD) |
|
|
Screen Ratio |
16:9 |
|
|
Brightness |
250 nits |
|
|
Touch Screen |
Touch Screen |
Projected Capacitive (Multi-touch) |
|
Operating Systems |
Windows |
Windows 10 IoT, Windows 10 Pro, Windows 11 Pro |
|
External I/O Ports |
USB |
4x USB 3.0 |
|
Serial / Com |
2x COM |
|
|
Serial Protocol Detail |
Included Y-Cable provides two DB-9 Com ports: 1x 5-pin RS-232 (COM1) and 1x Configurable 3-Pin RS-232/422/485 (COM2) |
|
|
Ethernet / LAN |
2x RJ45 GbE LAN |
|
|
Video Outputs |
1x DisplayPort |
|
|
Audio Ports |
1x 3.5mm Audio Line-Out |
|
|
Power Input Port |
DC-in Jack (Phoenix Type) |
|
|
Power |
Input Voltage Range |
9-36V DC |
|
Standard Power Adapter |
12Vdc, 5A, 60W Adapater and cable |
|
|
Compatibility |
Security Hardware |
TPM 2.0 |
|
Multimedia |
Speakers |
Optional Speaker |
|
Thermal & Environmental |
Operating Temperature |
-30°C – +70°C |
|
Storage Temperature |
-40°C – +80°C |
|
|
Cooling Solution |
Passive – Fanless with Heatsink |
|
|
Humidity Range |
10% – 95% Non-condensing |
|
|
Enclosure |
Material |
Aluminum |
|
IP Rating |
IP66 Front Bezel |
|
|
Color |
Gray |
|
|
Mounting Options |
Panel Mount, VESA 100 Mount |
|
|
Peripherals & Wireless Connectivity |
WiFi |
Optional Wi-Fi 6 |
|
Bluetooth |
Optional Bluetooth 4.0 |
|
|
Weight / Dimensions |
Weight |
14.8 kg |
|
Dimensions |
640 x 65.1 x 395 mm |
|
|
Certification |
Certifications |
CE, FCC, CCC, RoHS, LVD |
