Description

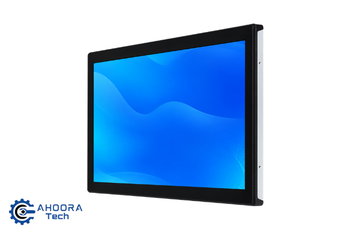

| SKU | 23.6” Panel Mount PC | VOPC-236 |
| Screen Size | 23.6inch |
| Resolution | 1920*1080 |
| Viewing Angle | 89/89/89/89 |
| Brightness | 250 cd/㎡ |
| Contrast Ratio | 3000:1 |
| Touch Screen | Capacitive |
| Controller | USB interface |
| Durability | ≥5M times |
| Processor | Intel® Processors |
| Memory | 4G/8G/16G/32G |
| Storage | under 5th Gen.: 1 * mSATA+1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB)
up to 6th Gen.: 1 * M.2+1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） |
| Network | 2 *RTL8111 |
| COM | 2 *RS232 (COM2 optional RS485, expansion to 6COM) |
| USB | 4*USB |
| Display | 1 *HDMI, 1 *VGA |
| Expansion Slots | Under 5th Gen.: 1*Mini PCIE WiFi & BT or 4G LTE
Up to 6th Gen.: 1*M.2 (1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
| Operating System | Windows / Linux |
| Dimensions
(mm) |
572.1*345.6*51.3 |
| Mounting Hole Size
(mm) |
567.6*341.2 |
| Gross weight
(kg) |
6.00 |
| Installation methods | Embedded / Wall mount / Desktop |
| Operating Temperature | -30 ~ +70°C |
| Storage Temperature | -40 ~ +80°C |
| Storage Humidity
*Non-condensing |
5 ~ 95% |
| Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
| Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable |
