Description
|
Product Name and Model |

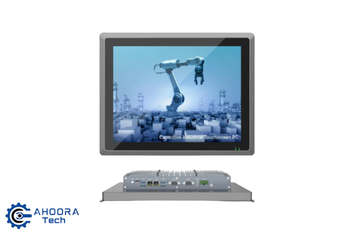

19″ Fanless Industrial Embedded Panel PC | 10 Point Capacitive Industrial Touch Screen | CP-6710-19 |
|
|
Primary Components |
Processor Family |
Intel Core I series 12th Generation Alder Lake |
|
Processor Model |
Core i3-1215U |
|
|
Processor Speed |
2x Performance Cores @ 4.4 GHz, 4x Efficient Cores @ 3.3 GHz, Up to 4.4 GHz |
|
|
Memory Type |
2x DDR4 SO-DIMM |
|
|
Memory Support |
4GB, 8GB, 16GB, 32GB, 64GB |
|
|
Storage Type |
1x M.2 2280 NVME SSD slot |
|
|
Storage Support |
M.2: 256GB-1TB |
|
|
Display |
Screen Size |
19″ |
|
Screen Resolution |
1280 x 1024 (SXGA) |
|
|
Screen Ratio |
5:4 |
|
|
Brightness |
350 nits, Optional 1000 nit High Brightness |
|
|
Touch Screen |
Touch Screen |
Projected Capacitive (Multi-touch), Resistive |
|
Operating Systems |
Windows |
Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro |
|
External I/O Ports |
USB |
2x USB 2.0, 2x USB 3.0 |
|
Serial / Com |
3x COM |
|
|
Serial Protocol Detail |
COM1 & COM2 RS-232/422/485 (BIOS select, RS-232 default), COM3 RS-232 |
|
|
Ethernet / LAN |
2x RJ45 GbE LAN |
|
|
Video Outputs |
3-Pin DC-In (Phoenix Type) |
|
|
Audio Ports |
1x 3.5mm Audio Line-Out |
|
|
Power Input Port |
DC-in Jack (Phoenix Type) |
|
|
Power |
Input Voltage Range |
9-36V DC |
|
Standard Power Adapter |
12Vdc, 5A, 60W Adapater and cable |
|
|
Compatibility |
Security Hardware |
TPM 2.0 |
|
Expansion Slots |
Internal M.2 |
1x M.2 2230 Key E (for WiFi expansion option) |
|
Multimedia |
Speakers |
Optional Speaker |
|
Thermal & Environmental |
Operating Temperature |
-30°C – +70°C |
|
Storage Temperature |
-40°C – +80°C |
|
|
Cooling Solution |
Passive – Fanless with Heatsink |
|
|
Humidity Range |
10% – 95% Non-condensing |
|
|
Enclosure |
Material |
Aluminum |
|
IP Rating |
IP66 Front Bezel |
|
|
Color |
Gray |
|
|
Mounting Options |
Panel Mount, VESA 100 Mount |
|
|
Peripherals & Wireless Connectivity |
WiFi |
Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6 |
|
Bluetooth |
Optional Bluetooth 5.3 |
|
|
Weight / Dimensions |
Weight |
5.70 kg |
|
Dimensions |
468 x 78 x 380 mm |
|
|
Certification |
Certifications |
CE, FCC, CCC, RoHS, LVD |
