| Product Name & Model |

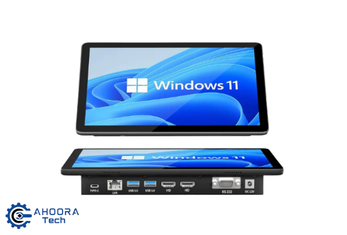

10.1” Touch Screen Panel PC | CP-6245-101 |
| Primary Components |
Processor Family |
Intel Core I series 11th Generation Tiger Lake |
| Processor Model |
Core i3-1115G4E, Core i5 1145G7E |
| Memory Type |
2x DDR4 SO-DIMM |
| Memory Support |
4GB, 8GB, 16GB, 32GB |
| Storage Type |
1x M.2 2280 NVME SSD slot |
| Storage Support |
M.2: 256GB-1TB |
| Display |
Screen Size |
10.1″ |
| Screen Resolution |
1280 x 800 (WXGA) |
| Screen Ratio |
16:10 |
| Brightness |
350 nits, Optional 1000 nit High Brightness |
| Touch Screen |
Touch Screen |
Projected Capacitive (Multi-touch) |
| External I/O Ports |
USB |
4x USB 3.2 |
| Serial / Com |
1x COM |
| Serial Protocol Detail |
Included Y-Cable provides two DB-9 Com ports: 1x 5-pin RS-232 (COM1) and 1x Configurable 3-Pin RS-232/422/485 (COM2) |
| Ethernet / LAN |
2x RJ45 GbE LAN |
| Video Outputs |
1x DP-1.4/HDMI combo Video Out |
| Other Ports |
1x 2-Pin DC Power Switch Connector |
| Audio Ports |
1x Audio Line-Out |
| Power Input Port |
3-Pin DC-In (Phoenix Type) |
| Power |
Standard |
12VDC Adapter and power cable |
| Input Voltage Range option |
9-36V DC |
| Max Power Consumption |
56W |
| Operating Systems |
Windows |
Windows 10 IoT, Windows 11 IoT, Windows 11 Pro |
| Linux |
Linux Ubuntu 20.04 or above (Contact your sales rep for more information) |
| Compatibility |
Security Hardware |
fTPM 2.0 |
| Expansion Slots |
Internal M.2 |
1x M.2 2230 Key E (for WiFi expansion option) |
| Thermal & Environmental |
Operating Temperature |
-30°C ~ +70°C |
| Storage Temperature |
-40°C ~ +80°C |
| Cooling Solution |
Passive – Fanless |
| Humidity Range |
5% – 95% Non-condensing |
| Enclosure |
Material |
Aluminum |
| IP Rating |
IP66 Front Bezel |
| Color |
Gray |
| Mounting Options |
Panel Mount, VESA 100 Mount |
| Peripherals & Wireless Connectivity |
WiFi |
Optional 802.11 b/g/n/ac |
| Bluetooth |
Optional Bluetooth 5.1 |
| Weight / Dimensions |
Weight |
1.52 kg |
| Dimensions |
269 x 189 x 51 mm |
